CJ-F006 Polyurethane Foam Swab

Foam Swab

Part no.

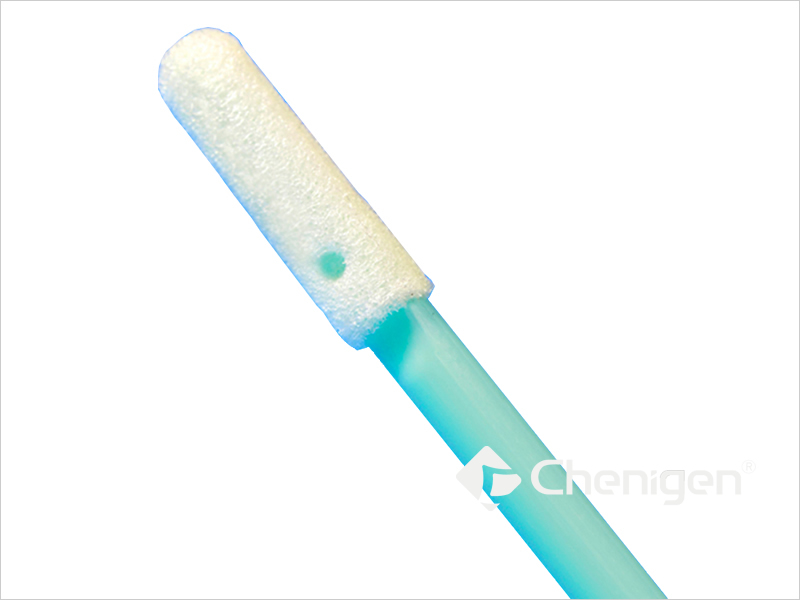

CJ-F006 Micro Mitt Polyurethane Foam Cleanroom/ESD Swab

Cleanroom and ESD-safe swabs are for precision cleaning, surface sampling, validation procedures, and the application of lubricants or other liquids within cleanroom and other critical contamination control environments.

CJ-F swabs are open-cell polyurethane foam thermally bonded over polypropylene handles. The laundered foam head of CJ-F006 possesses excellent solvent-holding capacity and durability. It is free from organic contaminants such as silicone, amide and phthalate esters, and features very low non-volatile residue (NVR), ion content and particle generation.

CJ-F006 swab is designed as a general purpose swab for cleaning very small grooved, slotted and recessed areas plus crevices and holes. It is cleanroom-laundered, open-cell foam head combines exceptional cleanliness with particle entrapment capability. A small rigid handle and rigid core provide firm support and precise control.

Our standard cleanroom swabs are not electrostatic discharge (ESD) safe, but can be manufactured as requested as ESD safe swabs to protect ESD sensitive components from electrostatic discharge. ESD-safe cleanroom swabs enable ESD-safe swabbing of small static sensitive components where ESD events must be controlled.

Features:
1) Compressed, 100 ppi Polyurethane foam.
2) Free from silicone, amide and phthalate esters.
3) Cleanroom laundered, providing ultra low levels of particles, NVRs (non-volatile residues) and ions.
4) Compatible with most common solvents such as IPA.

Applications:
1) Cleaning with solvents such as IPA.
2) Cleaning surfaces and recessed areas.
3) Remove flux residues and excess materials.

Specifications:
Head material: open-cell polyurethane foam
Handle material: polypropylene
Total swab length: 70mm
Head length: 10.5mm
Head width: 3.2mm
Head thickness: 2.5mm
Handle length: 59.5mm
Handle width: 2.3mm
Handle thickness: 2.3mm
Packing: 500 pcs/bag

For sensitive surfaces, please check our Knitted Polyester Cleanroom/ESD Swabs.
